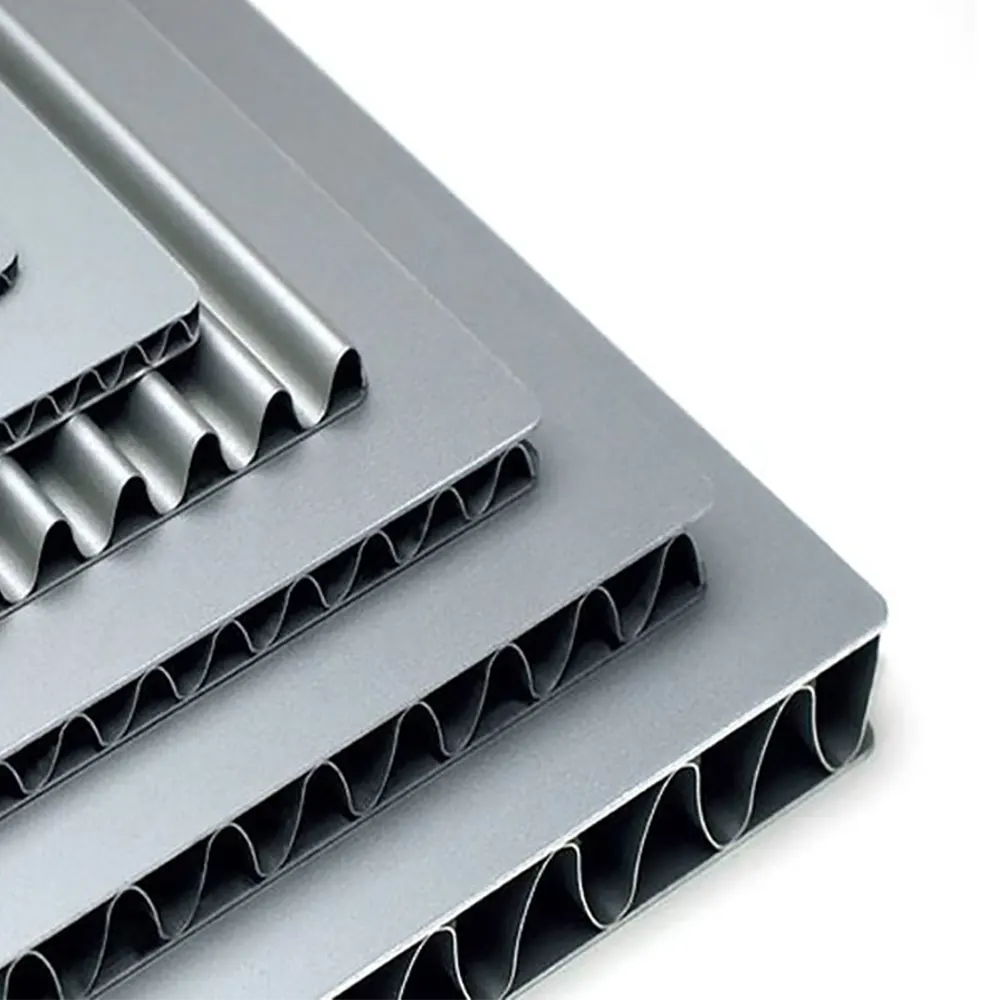

FR A2+ grade Aluminum Core Corrugated Panel
We supply premium-grade A2+ Aluminum Corrugated Core Panels (ACCPs), engineered to withstand high temperatures and extreme weather conditions with unmatched safety and durability.
Where Safety Matters Most
Our FR-grade ACCPs are the preferred choice for medical labs, showrooms, chemical factories, plants, commercial buildings, and industrial spaces where fire safety is critical.
Unmatched Fire Protection
In the event of a fire, the aluminium corrugated core significantly reduces flame spread, minimizing damage to life and property. These panels do not actively participate in combustion or release toxic fumes, ensuring safer evacuation without the risk of burning droplets.
Superior Performance & Durability
Beyond fire resistance, our ACCPs offer excellent processability, durability, thermal insulation, and ultra-high surface flatness. With a 180° peeling strength, they are a far more advanced solution compared to traditional honeycomb panels.
Innovation Backed by R&D
Backed by continuous research and development, our ACCPs reflect the highest standards of efficiency and innovation. This commitment has positioned us among the industry leaders, offering one of the widest and most advanced ACP product portfolios in the market.
| Property | Test Method | Units | Aluminium_Core_Corrugated_Panel |
|---|---|---|---|
| ACP Thickness | Measurement | mm | 4.0 |
| Coil Thickness | Measurement | mm | 0.5 |
| ACP Weight | Measurement | Kg/m2 | 3.8 |
| Core Density | Measurement | – | 2.74 |
| Peel Test | ASTM D 903 | N/mm | Min. 8 |
| ACP Tensile Strength | ASTM D 638 | Mpa | 50 |
| ACP Elongation | ASTM D 638 | % | Min. 5 |
| ACCP Yield Strength | ASTM D 638 | MPa | 45 |
| Thermal Expansion | ASTM D 696 | mm/M/100° | 2.4 |
| Heat Transmission Coefficient (U) | ASTM C 1363 | W/m²K | 5.53 |
| Fire Classification | EN 13501-1 | – | Class A2-s1-d0 |
| Fire Rating | DIN 4102 | – | Class A2 |
| Sound Transmission Loss | ASTM E 90 | dB | 25 |
| Sound Absorption Factor | ISO 354 | – | 0.05 |
